Model |
WB |
||
|
Capacity |
Q(kg) |
5000 |
5000 |
|
Lowered fork height |
h13(mm) |
88 |
78 |
|
Steering wheel |
mm |
φ200 |
φ180 |
|
Fork wheel single |
mm |
~ |
~ |
|
Fork wheel tandem |
mm |
φ85×80 |
φ75×80 |
|
Max. lift height |
h3(mm) |
205 |
195 |
|
Total height |
h14(mm) |
1253 |
1243 |
|
Overall length |
l1(mm) |
1544/1614 |
1544/1614 |
|
Fork length |
l(mm) |
1150/1220 |
1150/1220 |
|
Width overall forks |
b5(mm) |
550/685 |
550/685 |
|
Ground clearance,centre of wheelbase |
m2(mm) |
28 |
18 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1744/1814 |
1744/1814 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1794/1814 |
1794/1814 |
|
Turning radius |
Wa(mm) |
1300/1370 |
1300/1370 |
|
Service weight |
kg |
103-110 |
103-110 |
Hot
BF Hand Pallet Truck 3000 Kg
₨86,400.00
BFC6-7 Scale Pallet Truck 2000 Kg
₨288,000.00

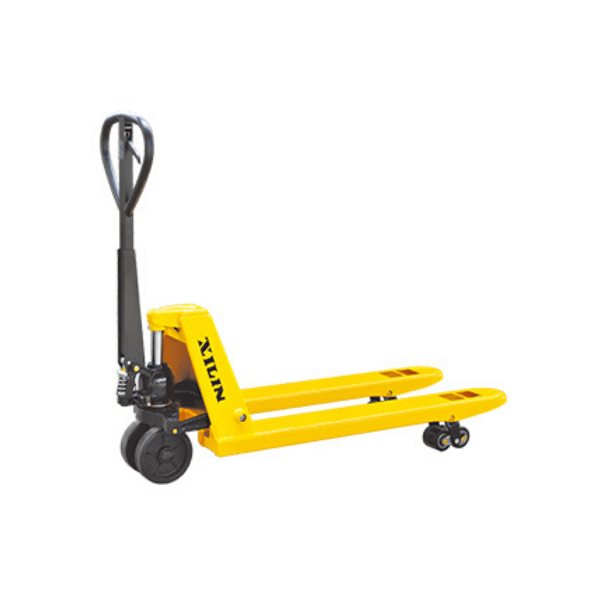

WB Hand Pallet Truck 5000 Kg
₨210,000.00
• High reliability and long service lift of 5 years.
• Double lifting speed when loads under 600 kg,which turns back to regular speed when above it.
• Impact free lifting ensures safety of cargo loading.
• The Lifting system is equipped with overloading protection valve to ensure the safe operation.
• The utilized structural design guarantees the convenience of assembling and disassembling.
• Light-weight fork frame,made from high rigidity steel plate.
• There is a finger hole in the connection of handle and pump,easy to assemble.
