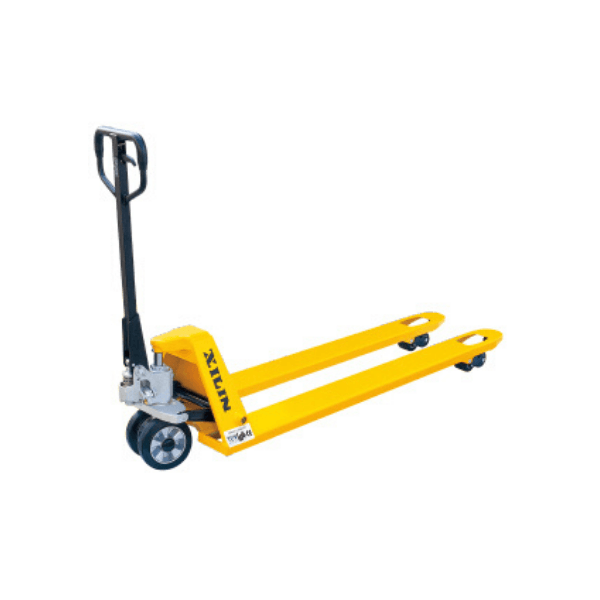

BF Hand Pallet Truck 2500 Kg
- Regular price
- Rs.81,600.00
- Sale price
- Rs.81,600.00
- Regular price
-
- Unit price
- per
Most standard and popular model with capacity 2500 – 3500kgs. Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time. 210 steering arc, and small turning...
16 people are viewing this right now
Type: Material Handling
Brand:
Sku: BFHPT-2500
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
Most standard and popular model with capacity 2500 – 3500kgs. Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time. 210 steering arc, and small turning radius.
Fork Lowering speed is controllable, operated by hand control and foot pedal. Equipped with over-load valve, with long service time. 3 position hand control – Raise, Lower, Neutral. 12 lubrication grease nipples on all movable parts for easy maintenance.
| Model |
BF |
||
| Capacity | Q(kg) | 2500/3000 | 2500/3000 |
| Lowered fork height | h13(mm) | 85 | 75 |
| Steeling wheel | mm | Φ200 | Φ180 |
| Fork wheel single | mm | Φ80×93 | Φ74×93 |
| Fork wheel tandem | mm | Φ80×70 | Φ74×70 |
| Max.lift height | h3(mm) | 200 | 190 |
| Total height | h14(mm) | 1224 | 1214 |
| Overall length | I1(mm) | 1483/1533/1603 | 1483/1533/1603 |
| Fork length | I(mm) | 1100/1150/1220 | 1100/1150/1220 |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
| Ground clearance,centre of wheelbase | m2(mm) | 40 | 30 |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 1683/1733/1803 | 1683/1733/1803 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 1783/1783/1803 | 1783/1783/1803 |
| Turning radius | Wa(mm) | 1216/1266/1336 | 1216/1266/1336 |
| Service weight | kg | 60-75 | 60-75 |
