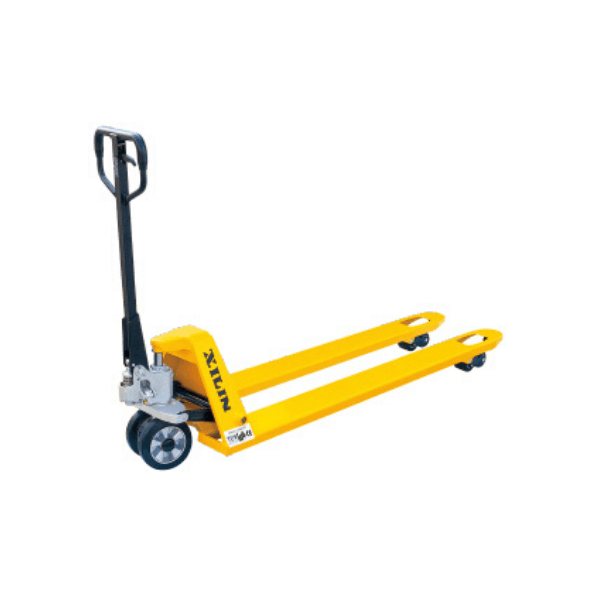

BF Hand Pallet Truck 2500 Kg
- Regular price
- Rs.81,600.00
- Sale price
- Rs.81,600.00
- Regular price
-
- Unit price
- per
[vc_row][vc_column][vc_column_text text_larger="no"] Model BF Capacity Q(kg) 2500/3000 2500/3000 Lowered fork height h13(mm) 85 75 Steeling wheel mm Φ200 Φ180 Fork wheel single mm Φ80×93 Φ74×93 Fork wheel tandem mm Φ80×70...
16 people are viewing this right now
Type: Material Handling
Brand:
Sku: BFHPT
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
[vc_row][vc_column][vc_column_text text_larger="no"]
[/vc_column_text][/vc_column][/vc_row]
| Model |
BF |
||
| Capacity | Q(kg) | 2500/3000 | 2500/3000 |
| Lowered fork height | h13(mm) | 85 | 75 |
| Steeling wheel | mm | Φ200 | Φ180 |
| Fork wheel single | mm | Φ80×93 | Φ74×93 |
| Fork wheel tandem | mm | Φ80×70 | Φ74×70 |
| Max.lift height | h3(mm) | 200 | 190 |
| Total height | h14(mm) | 1224 | 1214 |
| Overall length | I1(mm) | 1483/1533/1603 | 1483/1533/1603 |
| Fork length | I(mm) | 1100/1150/1220 | 1100/1150/1220 |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
| Ground clearance,centre of wheelbase | m2(mm) | 40 | 30 |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 1683/1733/1803 | 1683/1733/1803 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 1783/1783/1803 | 1783/1783/1803 |
| Turning radius | Wa(mm) | 1216/1266/1336 | 1216/1266/1336 |
| Service weight | kg | 60-75 | 60-75 |
