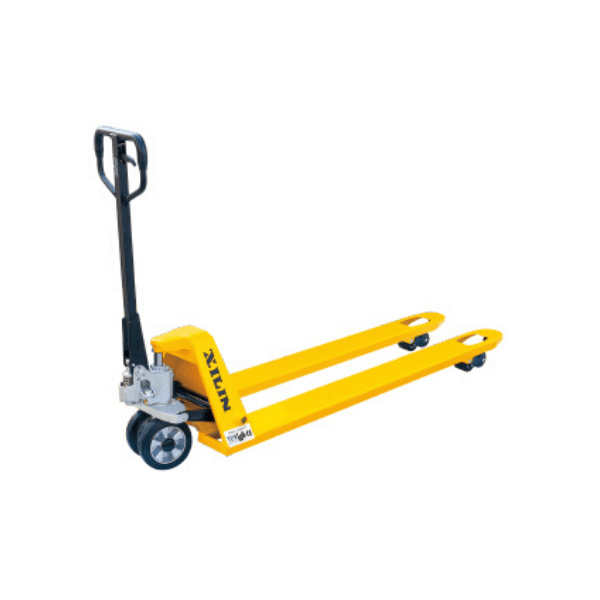

BF Hand Pallet Truck 3000 Kg
- Regular price
- Rs.86,400.00
- Sale price
- Rs.86,400.00
- Regular price
-
- Unit price
- per
Specification Unit Model BF Model BF Capacity Q(kg) 2500/3000 2500/3000 Lowered fork height h13(mm) 85 75 Steering wheel mm Φ200 Φ180 Fork wheel (single) mm Φ80×93 Φ74×93 Fork wheel (tandem)...
21 people are viewing this right now
Type: Material Handling
Brand:
Sku: BFHPT-1
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
| Specification | Unit | Model BF | Model BF |
|---|---|---|---|
| Capacity | Q(kg) | 2500/3000 | 2500/3000 |
| Lowered fork height | h13(mm) | 85 | 75 |
| Steering wheel | mm | Φ200 | Φ180 |
| Fork wheel (single) | mm | Φ80×93 | Φ74×93 |
| Fork wheel (tandem) | mm | Φ80×70 | Φ74×70 |
| Max. lift height | h3(mm) | 200 | 190 |
| Total height | h14(mm) | 1224 | 1214 |
| Overall length | I1(mm) | 1483/1533/1603 | 1483/1533/1603 |
| Fork length | I(mm) | 1100/1150/1220 | 1100/1150/1220 |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
| Ground clearance (center of wheelbase) | m2(mm) | 40 | 30 |
| Aisle width (pallets 1000×1200 crossways) | Ast(mm) | 1683/1733/1803 | 1683/1733/1803 |
| Aisle width (pallets 800×1200 lengthways) | Ast(mm) | 1783/1783/1803 | 1783/1783/1803 |
| Turning radius | Wa(mm) | 1216/1266/1336 | 1216/1266/1336 |
| Service weight | kg | 60–75 | 60–75 |
