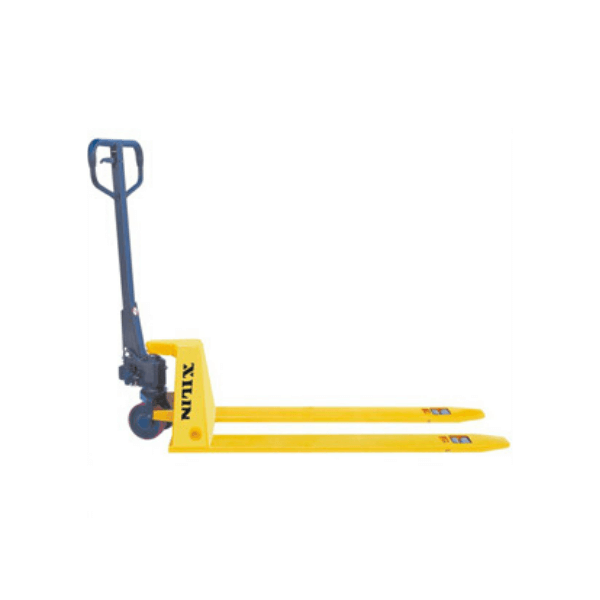

BFL 15 Low Profile Pallet Truck 1500 Kg
- Regular price
- Rs.162,000.00
- Sale price
- Rs.162,000.00
- Regular price
-
- Unit price
- per
[vc_row][vc_column][vc_column_text text_larger="no"]BFL 15 Low Profile Pallet Truck 1500 Kg Model BFL10 BFL15 Capacity Q(kg) 1000 1500 Lowered fork height h13(mm) 35 52 Steering wheel mm φ150 φ150 Fork wheel...
21 people are viewing this right now
Type: Material Handling
Brand:
Sku: BFL15
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
[vc_row][vc_column][vc_column_text text_larger="no"]BFL 15 Low Profile Pallet Truck 1500 Kg
[/vc_column_text][/vc_column][/vc_row]
|
Model |
BFL10 |
BFL15 |
|
|
Capacity |
Q(kg) |
1000 |
1500 |
|
Lowered fork height |
h13(mm) |
35 |
52 |
|
Steering wheel |
mm |
φ150 |
φ150 |
|
Fork wheel single |
mm |
~ |
φ50×93 |
|
Fork wheel tandem |
mm |
φ35×60 |
φ50×70 |
|
Max. lift height |
h3(mm) |
105 |
140 |
|
Total height |
h14(mm) |
1174 |
1189 |
|
Overall length |
l1(mm) |
1533/1603 |
1547/1617 |
|
Fork dimensions |
s/e/l |
28/150/1150(1220) |
38/150/1150(1220) |
|
Width overall forks |
b5(mm) |
520/550/685 |
520/550/685 |
|
Ground clearance,centre of wheelbase |
m2(mm) |
7 |
14 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1733/1803 |
1747/1817 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1783/1803 |
1797/1817 |
|
Turning radius |
Wa(mm) |
1266/1336 |
1286/1356 |
|
Service weight |
kg |
65-80 |
65-80 |
