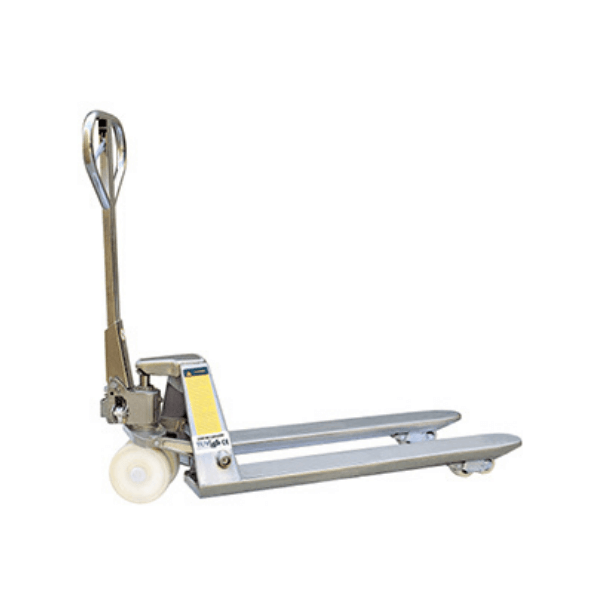

BFS Steel Hand Pallet Truck 2500 Kg
- Regular price
- Rs.474,000.00
- Sale price
- Rs.474,000.00
- Regular price
-
- Unit price
- per
[vc_row][vc_column][vc_column_text text_larger="no"] Model BFS Capacity Q(kg) 2500 Lowered fork height h13(mm) 85/75 Steering wheel mm φ200/φ180 Fork wheel single mm φ74×93 Fork wheel tandem mm φ74×70 Max. lift height h3(mm)...
27 people are viewing this right now
Type: Material Handling
Brand:
Sku: BFSHPT
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
[vc_row][vc_column][vc_column_text text_larger="no"]
[/vc_column_text][/vc_column][/vc_row]
|
Model |
BFS |
|
|
Capacity |
Q(kg) |
2500 |
|
Lowered fork height |
h13(mm) |
85/75 |
|
Steering wheel |
mm |
φ200/φ180 |
|
Fork wheel single |
mm |
φ74×93 |
|
Fork wheel tandem |
mm |
φ74×70 |
|
Max. lift height |
h3(mm) |
200/190 |
|
Total height |
h14(mm) |
1224/1214 |
|
Overall length |
l1(mm) |
1533/1603 |
|
Fork dimensions |
s/e/l |
45/160/1150(1220) |
|
Width overall forks |
b5(mm) |
520/550/685 |
|
Ground clearance,centre of wheelbase |
m2(mm) |
40/30 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1733/1803 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1783/1803 |
|
Turning radius |
Wa(mm) |
1266/1336 |
|
Service weight |
kg |
65-80 |
