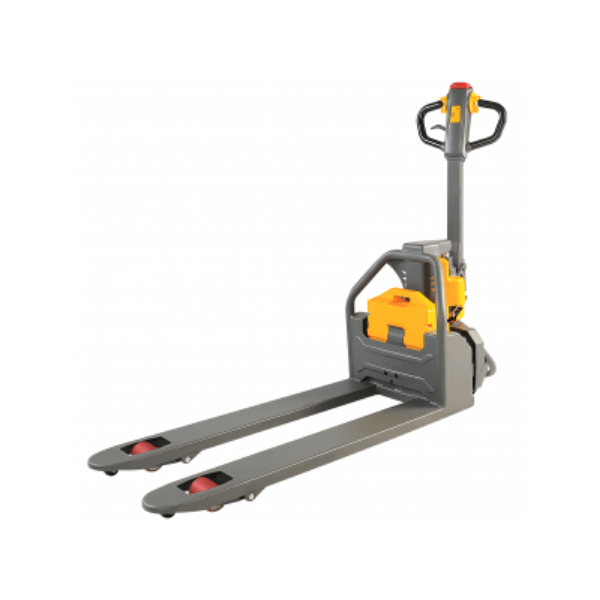

CBD12W Electric Pallet Truck 1200 Kg
- Regular price
- Rs.900,000.00
- Sale price
- Rs.900,000.00
- Regular price
-
- Unit price
- per
[vc_row][vc_column][vc_column_text text_larger="no"] Model CBD12W Load capacity Q(kg) 1200 Load centre distance c(mm) 600 Fork height, lowered h13(mm) 80 Tyre size, front mm Φ250 Tyre size, rear(single) mm Φ80 Wheels, number...
24 people are viewing this right now
Type: Material Handling
Brand:
Sku: CBD12W
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
[vc_row][vc_column][vc_column_text text_larger="no"]
[/vc_column_text][/vc_column][/vc_row]
| Model | CBD12W | |
| Load capacity | Q(kg) | 1200 |
| Load centre distance | c(mm) | 600 |
| Fork height, lowered | h13(mm) | 80 |
| Tyre size, front | mm | Φ250 |
| Tyre size, rear(single) | mm | Φ80 |
| Wheels, number front rear(x = driven wheels) | 1x-2/4 | |
| Max. lift height | h3(mm) | 110 |
| Height of tiller in drive position min./ max. | h14(mm) | 635/1200 |
| Overall length | l1(mm) | 1651/1721 |
| Length to face of forks | l2(mm) | 502 |
| Overall width | b1(mm) | 550/680 |
| Fork dimensions | s/e/l(mm) | 45/160/1150(1220) |
| Width overall forks | b5(mm) | 550/680 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1850/1920 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1900/1920 |
| Turning radius | Wa(mm) | 1452/1522 |
| Travel speed, laden/ unladen | km/h | 4/4.5 |
| Battery voltage,nominal capacity K5 | V/Ah | 48/20 |
| Battery dimensions l/w/h | mm | 340x130x307 |
| Battery weight | kg | 10 |
| Service weight (with battery) | kg | 140 |
