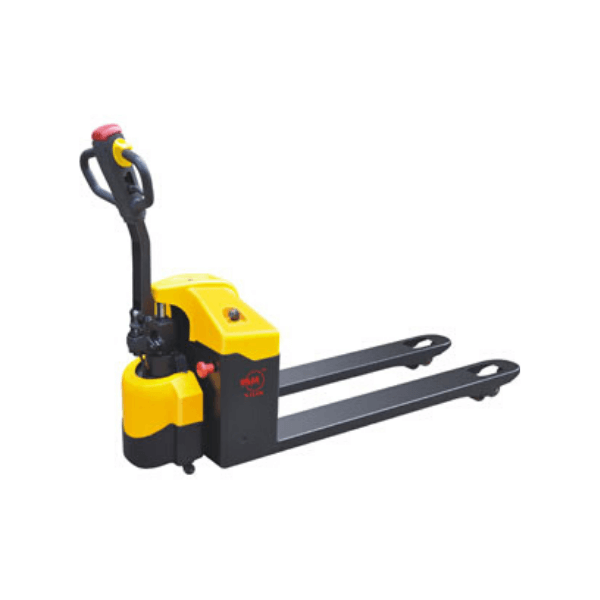

CBD20A Semi Electric Pallet Truck 2000 Kg
- Regular price
- Rs.720,000.00
- Sale price
- Rs.720,000.00
- Regular price
-
- Unit price
- per
[vc_row][vc_column][vc_column_text text_larger="no"]CBD20A Semi Electric Pallet Truck 2000 Kg Model CBD20A Load capacity Q(kg) 2000 Load centre distance c(mm) 600 Fork height, lowered h13(mm) 87/77 Tyre size, front mm Φ195...
26 people are viewing this right now
Type: Material Handling
Brand:
Sku: CBD20
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
[vc_row][vc_column][vc_column_text text_larger="no"]CBD20A Semi Electric Pallet Truck 2000 Kg
[/vc_column_text][/vc_column][/vc_row]
| Model | CBD20A | ||||
| Load capacity | Q(kg) | 2000 | |||
| Load centre distance | c(mm) | 600 | |||
| Fork height, lowered | h13(mm) | 87/77 | |||
| Tyre size, front | mm | Φ195 | |||
| Tyre size, rear | mm | Φ85/Φ75 | |||
| Max. lift height | h3(mm) | 190/180 | |||
| Height of tiller in drive position min./max. | h14(mm) | 770/1254 | |||
| Overall length | l,(mm) | 1644/1714 | |||
| Length to face of forks | l2(mm) | 490 | |||
| Fork dimensions | s/e/l(mm) | 60/160/1150(1220) | |||
| Width overall forks | b5(mm) | 520/550/680 | |||
| Aisle width for pallets 1000×1200 crossways | As,(mm) | 1844/1914 | |||
| Aisle width for pallets 800×1200 lengthways | As,(mm) | 1894/1914 | |||
| Turning radius | Wa(mm) | 1445/1515 | |||
| Travel speed, laden/unladen | Km/h | 5/5.5 | |||
| Battery voltage, nominal capacity K20 | V/Ah | 24/105 | |||
| Battery weight | Kg | 49 | |||
| Service weight(with battery) | Kg | 220 | |||
