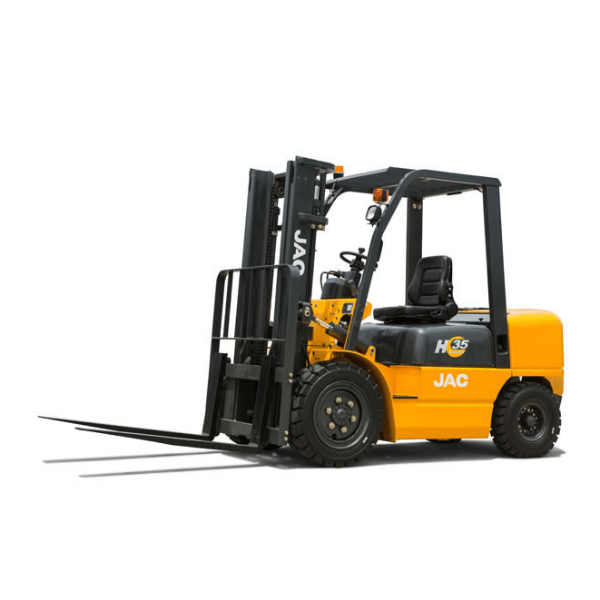

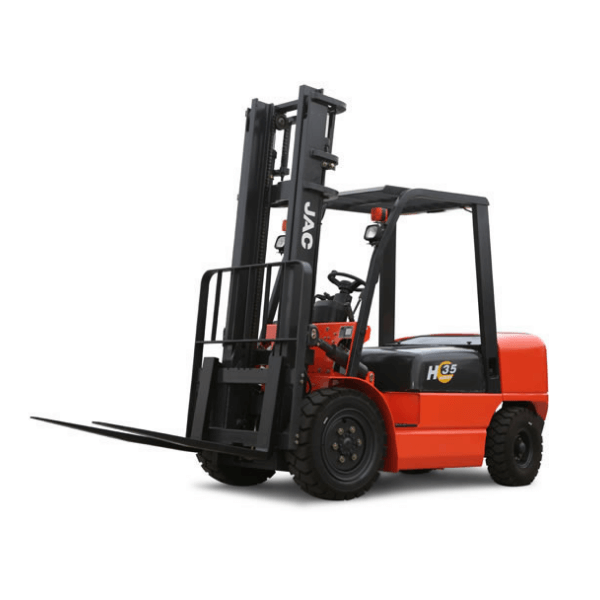

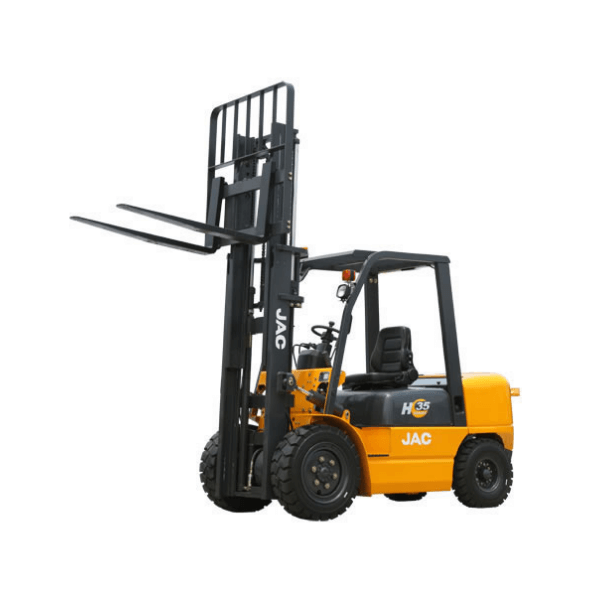

Diesel Forklift 3 Ton with ISUZU C240 Duplex FF Mast
- Regular price
- Rs.4,764,000.00
- Sale price
- Rs.4,764,000.00
- Regular price
-
- Unit price
- per
This forklifts is versatile in any environment wet or dry. 3.0T heavy duty diesel forklift is widely used in overseas or domestic market. Use high-power engine to provide sufficient energy. l Smooth...
18 people are viewing this right now
Type: Material Handling
Brand:
Sku: CPC30H-1
Shipping & Returns
Free Pick up from the IMARTPK Store.
Courier delivery - our courier will deliver to the specified address within 2-3 business days!
Easy Returns - contact us via email sales@imartpk.com
Share
This forklifts is versatile in any environment wet or dry. 3.0T heavy duty diesel forklift is widely used in overseas or domestic market. Use high-power engine to provide sufficient energy. l Smooth drive system: Easy operation, reliable gearbox, manual or electronic shift available.
| Model | CPCD30H | |||
| Features | Power type | Diesel | ||
| Rated load（kg） | 3000 | |||
| Load center distance（mm） | 500 | |||
| Lift height（mm） | 3000 | |||
| Free lift height（mm） | 155 | |||
| Fork size | L×W×T（mm） | 1070×125×45 | ||
| Mast tilt angle | Front/Rear | 8°/10° | ||
| Minimum turning radius（mm） | 2550 | |||
| Minimum right angle stacking aisle width（mm） | 4025 | |||
| Minimum right angle aisle width（mm） | 2750 | |||
| Minimum ground clearance | Frame center(no load)（mm） | 140 | ||
| Mast Bottom（no load）（mm） | 130 | |||
| Height of overhead guard（mm） | 2090 | |||
| Overhang (FR)（mm） | 475 | |||
| Performance | Maximum travel speed | Full load（km/h） | 19 | |
| No load（km/h） | 19 | |||
| Maximum lift speed | Full load（mm/s） | 560 | ||
| No load（mm/s） | 570 | |||
| Maximum drawbar pull | Full load（KN） | 20 | ||
| Maximum gradeability（%） | 15 | |||
| Dimensions | Overall length | Without forks（mm） | 2765 | |
| Overall width（mm） | 1230 | |||
| Mast height at maximum lift (with backrest)（mm） | 4260 | |||
| Mast lowered height（mm） | 2075 | |||
| Chassis | Tires | Front wheel | 28×9-15-14PR | |
| Rear wheel | 6.50-10-10PR | |||
| Wheelbase（mm） | 1760 | |||
| Tread | Front wheel/rear wheel（mm） | 1000/970 | ||
| Self weight | Without load（Kg） | 4140 | ||
| Drive | Battery | Voltage/capacity（V/Ah） | 12/80 | |
| Engine | ||||
| Rated output（kw/r.p.m） | 36.8/2500 | |||
| Rated torque（Nm/r.p.m） | 156/1700-1900 | |||
| Bore x stroke（mm） | 90×105 | |||
| Number of cylinders | 4 | |||
| Displacement（L） | 2.67 | |||
| Fuel tank capacity（L） | 55 | |||
| Transmissions (FWD/RWD) | 1/1 manual shift | |||
| Operating pressure（Mpa） | 18.5 | |||
| Number of wheels (FR/RR)（pcs） | 2/2 | |||
| Lowering speed (full load)（mm/s） | 460 | |||
| Lowering speed (no load)（mm/s） | 430 | |||
| Axle load distribution (full load) (FR/RR)（kg） | 6426/714 | |||
| Axle load distribution (no load) (FR/RR)（kg） | 1656/2484 | |||
